Smoking room CUBE 1.40 x 2.58 x 2.30 m

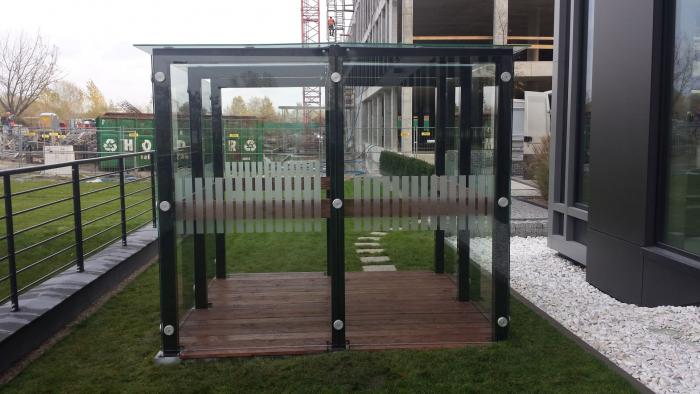

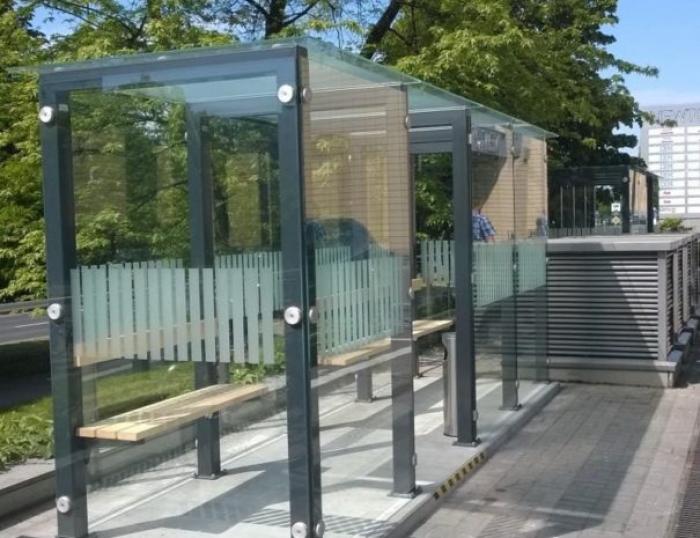

CUBE smoking shelter made of hot-dip galvanised and powder-coated steel structures with glass walls and roof. Equipped with a built-in bench with a wooden seat.
Key specifications:
Dimensions: 1.40 × 2.58 × 2.30 m or 1.40 × 2.58 × 5.76 m (depending on version)
Frame: tubes up to 100 × 100 × 3 mm
Galvanising: according to EN ISO 1461
Powder coating: according to EN ISO 12944, min. 80 microns
Coating system: QUALICOAT certificate No. P-1237 (class 1)
Roof: 10 mm tempered safety glass
Wall panels: 8 mm tempered glass
Colour: any RAL colour
- Rear and side walls in other materials on request
- Optional advertising panel with or without LED lighting
- Can be made to the customer's drawing or visualisation
Key specifications:
Dimensions: 1.40 × 2.58 × 2.30 m or 1.40 × 2.58 × 5.76 m (depending on version)
Frame: tubes up to 100 × 100 × 3 mm
Galvanising: according to EN ISO 1461
Powder coating: according to EN ISO 12944, min. 80 microns
Coating system: QUALICOAT certificate No. P-1237 (class 1)
Roof: 10 mm tempered safety glass
Wall panels: 8 mm tempered glass
Colour: any RAL colour
- Rear and side walls in other materials on request
- Optional advertising panel with or without LED lighting
- Can be made to the customer's drawing or visualisation
