Compact two-level bicycle rack for 17 bikes, 540 cm, galvanised

Compact galvanised steel bicycle rack for 17 bikes, designed for areas with limited space: reduced spacing between slots lets you park more bikes in a small area. The slots are set at two different levels, so parked bikes do not touch; bikes can be parked from both sides and the slots can be angled (45-90°).

Key specifications:
Number of places: 17

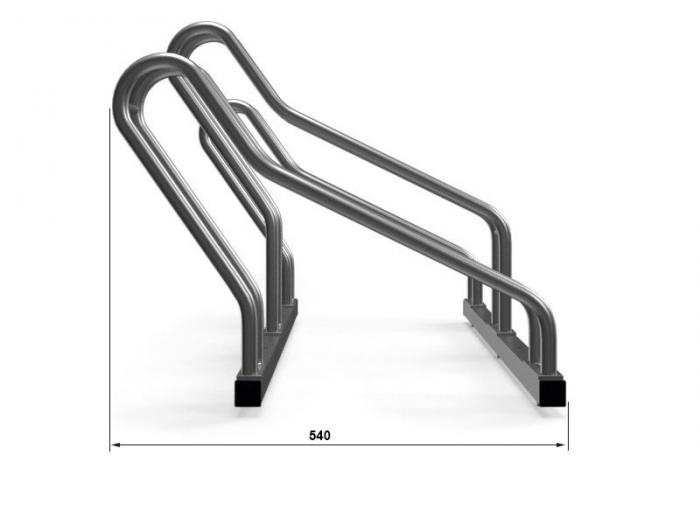

Dimensions (H × W × D): 45-55 × 540 × 54 cm
Slot width: 6.5 cm
Spacing between places: 33 cm
Tube diameter: 18 mm
Tube wall thickness: 2 mm
Profile: 30 × 30 × 1.5 mm
Material: galvanised steel
Slot angle: adjustable (90° and 45°)
Fixing: bolt-down to the ground
Weight: 46 kg
Installation: 16 expansion anchors Ø 10 × 100 mm with screws Ø 7 × 107 mm (included), key SW13 or T40
