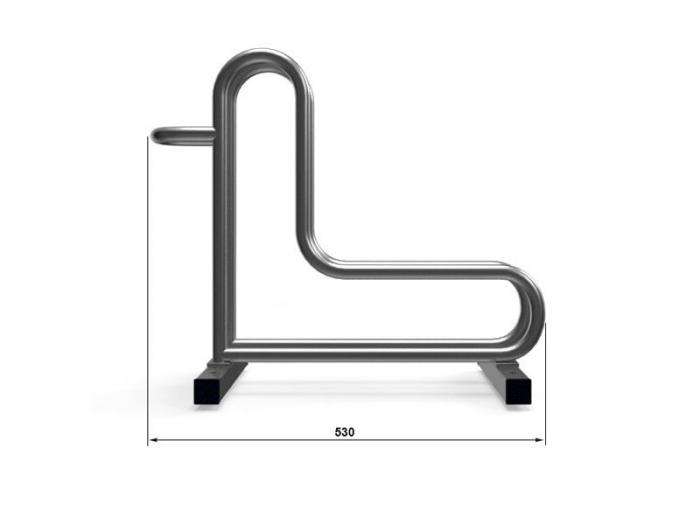

Rad-9 bike rack
RAD-9 bicycle stand with nine positions. Designed for parking all types and sizes of bicycles, including those equipped with disc brakes. ATTENTION !!! It is possible to personalize the width of the positions in the rack. Possible job options are available here.

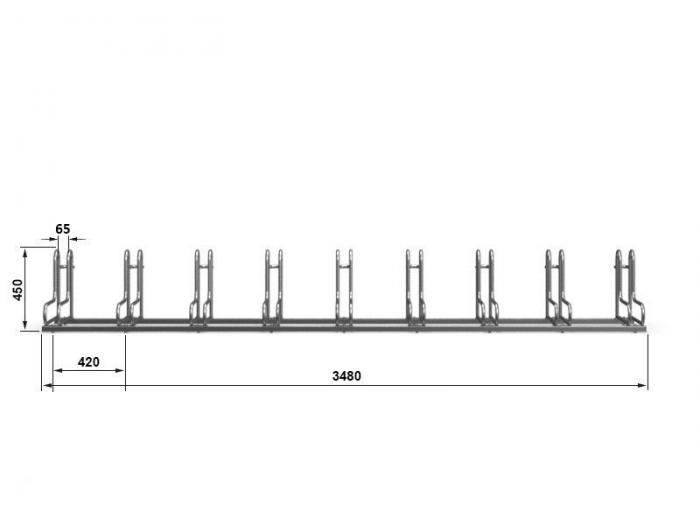

Number of spaces: 9
Width: 348 cm
Height: 42 cm
Depth: 56 cm
Space width: 6,5 cm
Distance between spaces: 42 cm
Tube diameter: 18 mm
Tube wall thickness: 2 mm
Stand profile: 30x30x1,5 mm
Material (options): galvanised steel, galvanised and painted steel, stainless steel
Space adjustment: adjustable (90 and 45 stopni)
Fixing method: to the ground
Mounting method: bolt-down
Weight: 31 kg
Mounting: 8 expansion anchors Ø 10x100 mm with screws Ø 7x107 mm (included), key SW13 or T40
Bike space arrangement: angled or perpendicular
Number of spaces: 9
Width: 348 cm
Height: 42 cm
Depth: 56 cm
Space width: 6,5 cm
Distance between spaces: 42 cm
Tube diameter: 18 mm
Tube wall thickness: 2 mm
Stand profile: 30x30x1,5 mm
Material (options): galvanised steel, galvanised and painted steel, stainless steel
Space adjustment: adjustable (90 and 45 stopni)
Fixing method: to the ground
Mounting method: bolt-down
Weight: 31 kg
Mounting: 8 expansion anchors Ø 10x100 mm with screws Ø 7x107 mm (included), key SW13 or T40
Bike space arrangement: angled or perpendicular
