Bicycle lift hangers on frame, double-sided, 44 places

Bicycle hanger system on a separate load-bearing frame (double-sided version), a solution for bike rooms where fixing hangers to walls is limited or undesirable. The frame can be placed almost anywhere in the room without touching the walls; the hangers have holders for locking the bicycles. Can be made for any number of places.

Key specifications:
Number of places: 44
Hanger depth: 50 cm

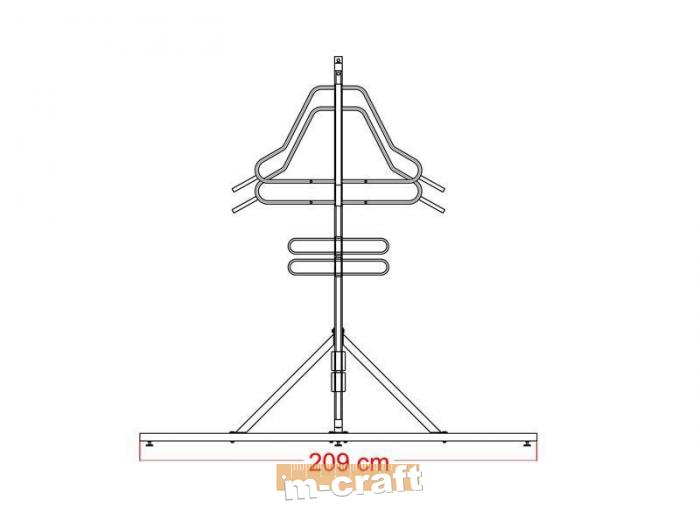

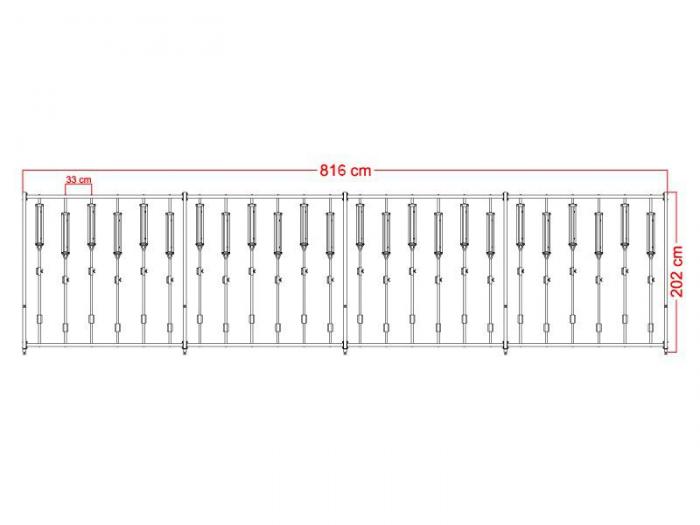

Frame dimensions (W × D × H): 816 × 209 × 202 cm
Guide rail length: 180 cm, profile 25x25x1.5 mm
Slot width (max. tyre): tyres up to 29x2.6 in (6.6 cm), compatible with brake discs up to Ø 203 mm
Tube diameter: Ø 18 mm
Tube wall thickness: 2 mm
Load-bearing frame profile: 40x40x2 mm
Material: galvanised steel
Permissible load per hanger: 30 kg
