Bicycle lift hangers on frame, double-sided, 22 places

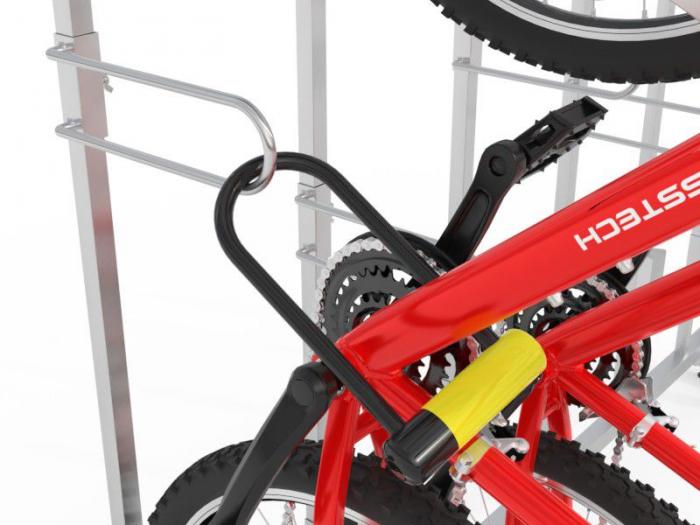

Bicycle hanger system on a separate load-bearing frame (double-sided version), a solution for bike rooms where fixing hangers to walls is limited or undesirable. The frame can be placed almost anywhere in the room without touching the walls; the hangers have holders for locking the bicycles. Can be made for any number of places. For bicycles with mudguards only the 5.5 cm slot version is compatible.

Key specifications:
Number of places: 22
Hanger depth: 50 cm

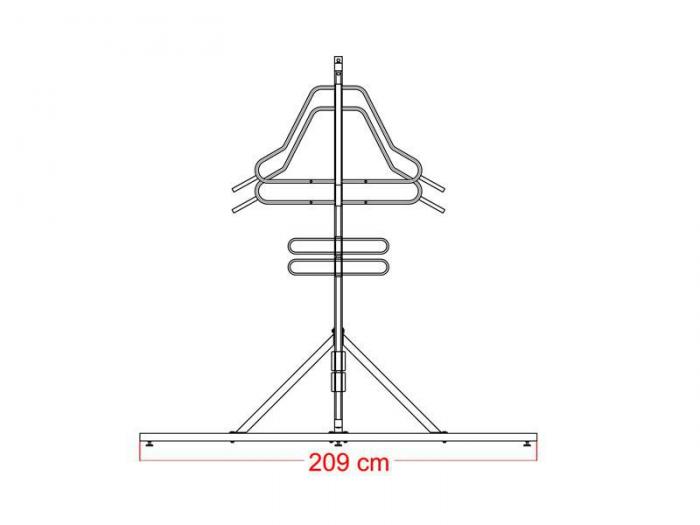

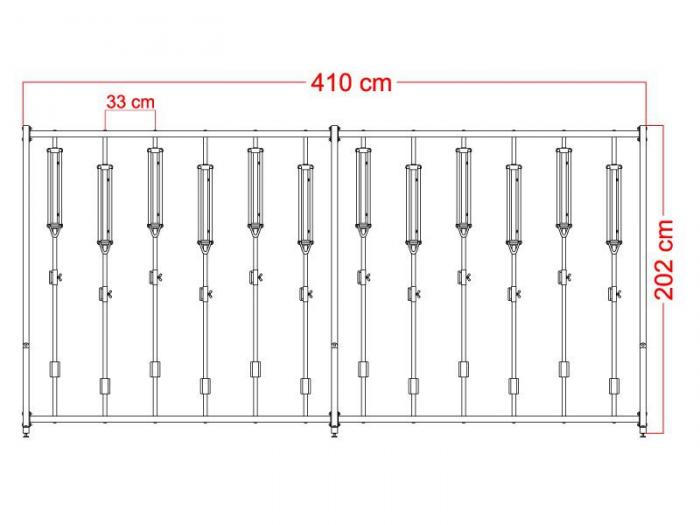

Frame dimensions (W × D × H): 410 × 209 × 203 cm

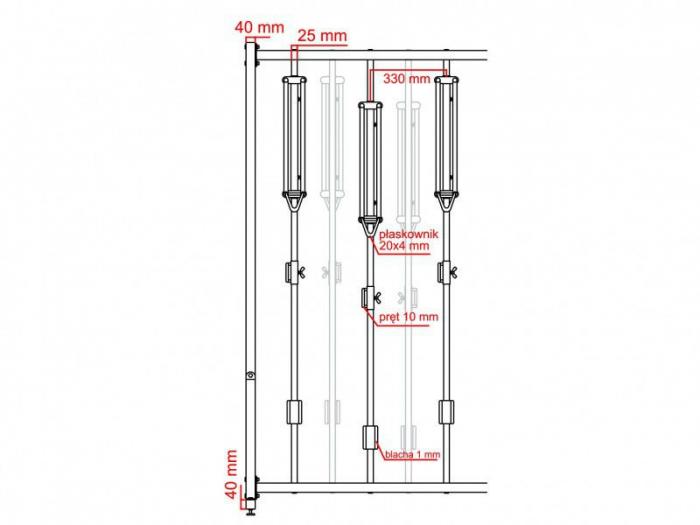

Guide rail length: 180 cm, profile 25x25x1.5 mm
Slot width (max. tyre): variant I - tyres up to 29x2.2 in (5.5 cm), variant II - up to 29x3.15 in (8 cm); compatible with brake discs up to Ø 203 mm
Tube diameter: Ø 18 mm
Tube wall thickness: 2 mm
Load-bearing frame profile: 40x40x2 mm
Material: galvanised steel
