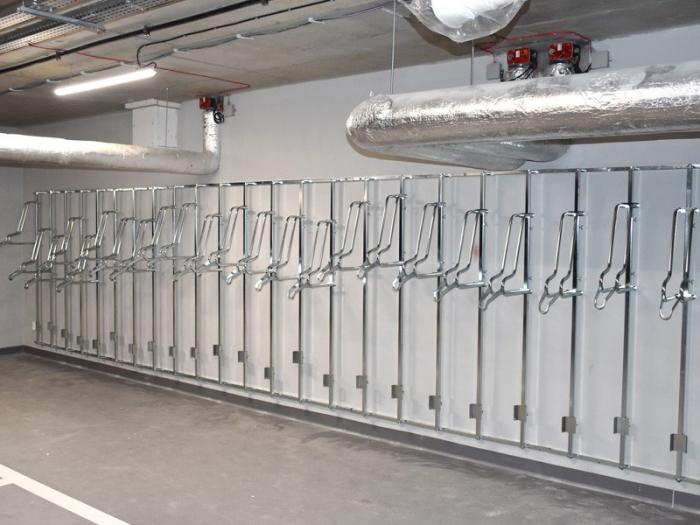

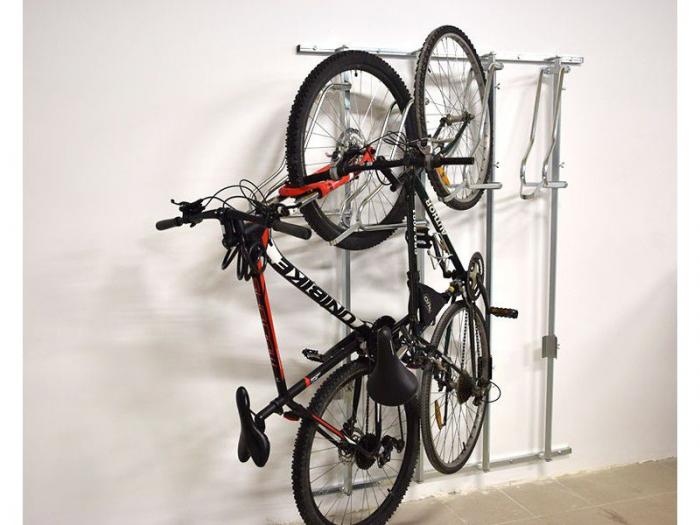

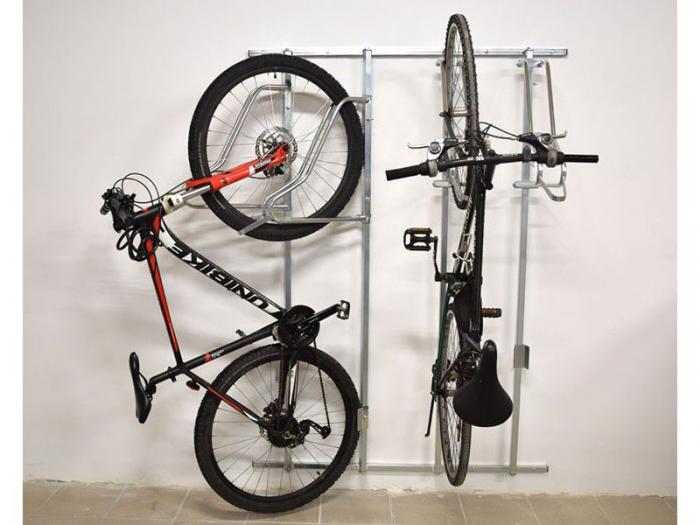

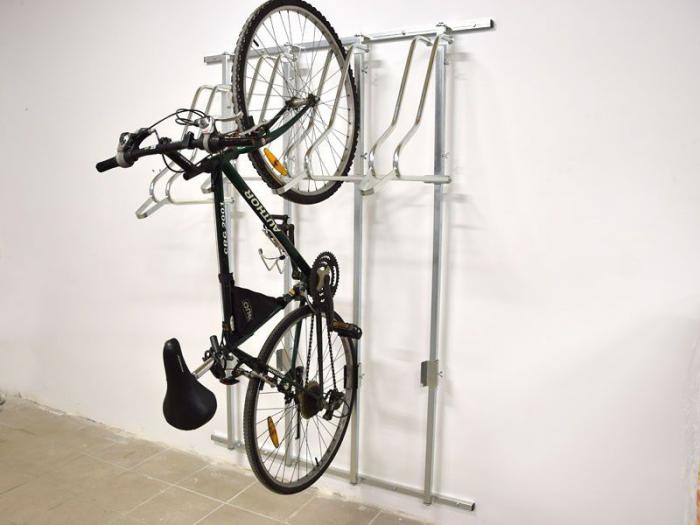

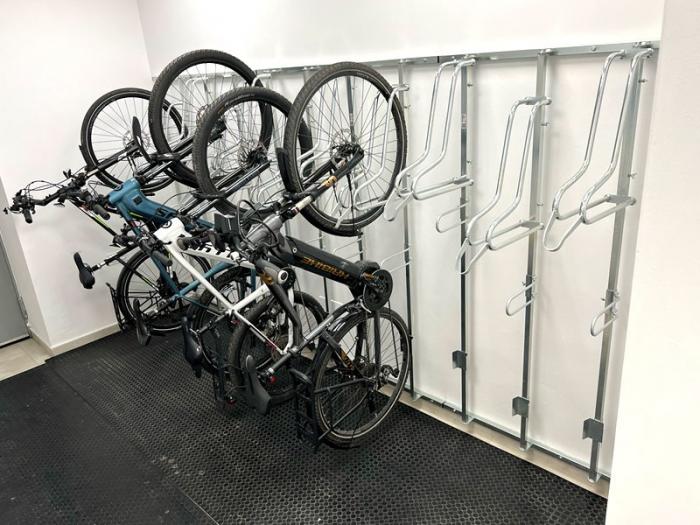

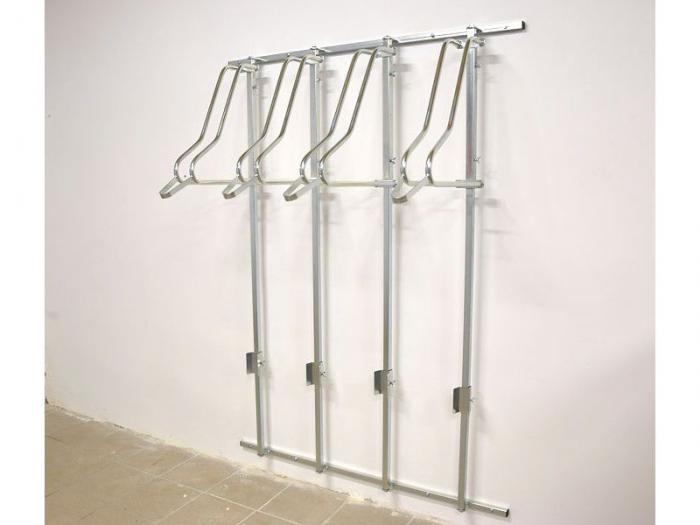

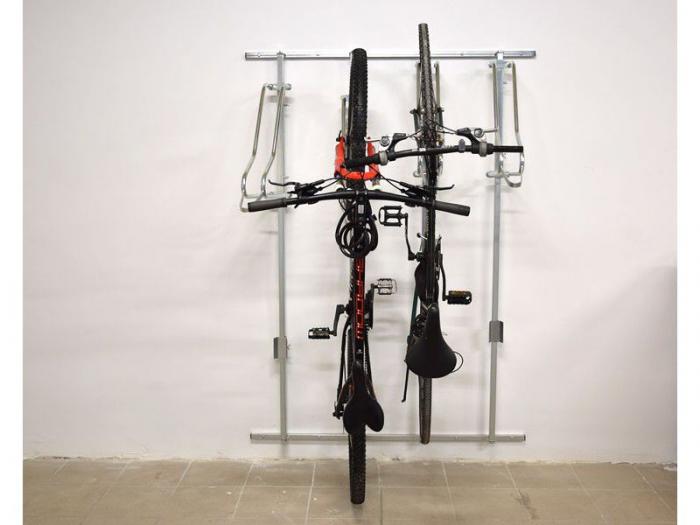

Wall bike hanger on support profile, 6 places

Wall-mounted bike hanger for 6 bikes on a support profile with guide rails, allowing simple wall mounting with fewer fixing points while keeping the load capacity. Places adjust both vertically and horizontally. Also available with a holder for locking the bike by its frame.

Key specifications:
Width: 177 cm
Depth: 69 cm
Mounting profile: 30x30x1.5 mm
Number of places: 6
Spacing between places: 33 cm
Tube diameter: Ø 18 mm
Guide rail length: 180 cm, profile 25x25x1.5 mm

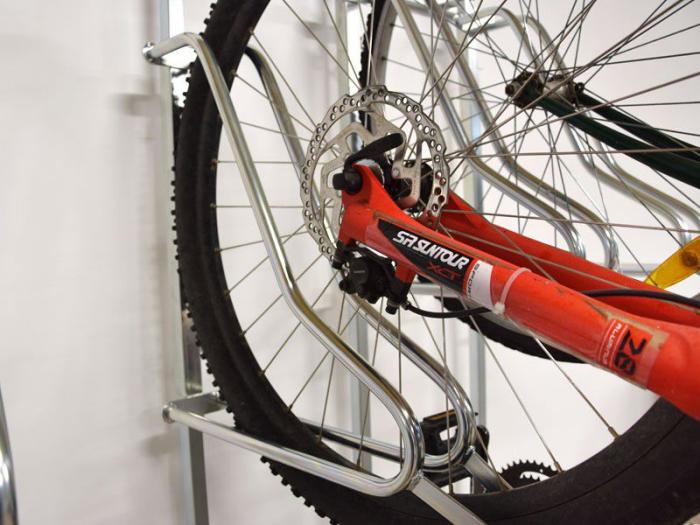

Place width (max. tyre width): version I up to 29x2.2 in (5.5 cm), version II up to 29x3.15 in (8 cm), compatible with brake discs up to Ø 203 mm
Material: galvanized steel
Max. load per hanger: 30 kg
Fixing: bolt-down
Mounting: 8 expansion anchors Ø 10x100 mm with screws Ø 7x107 mm (included), wrench SW13 or T40
