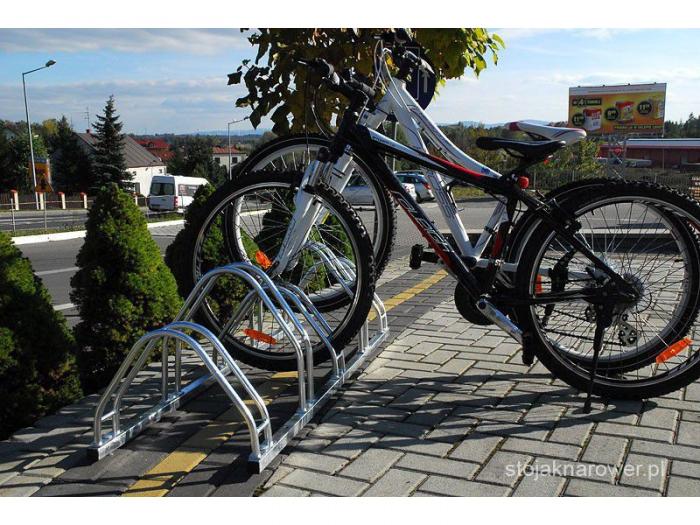

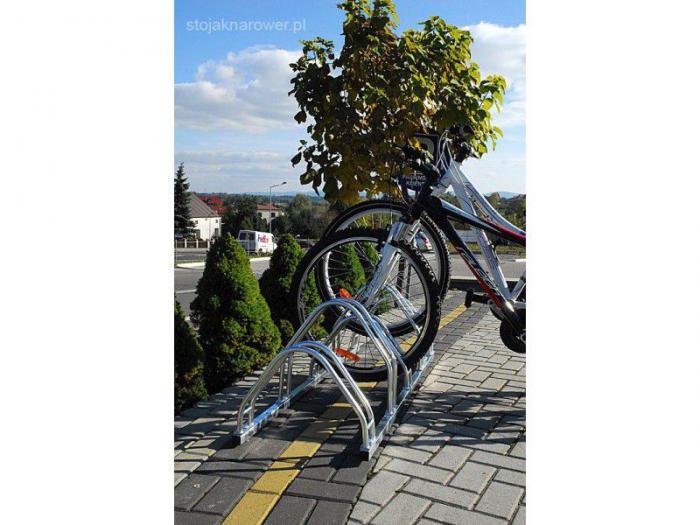

Two-level bicycle rack for 5 bikes, 144 cm

Bicycle rack for sites with limited parking space: reduced spacing between places lets more bikes park in a small area. The places are set at two different levels, so parked bikes do not touch; bikes can be parked from both sides and the angle of the places can be set from 45 to 90 degrees.

Key specifications:
Number of places: 5

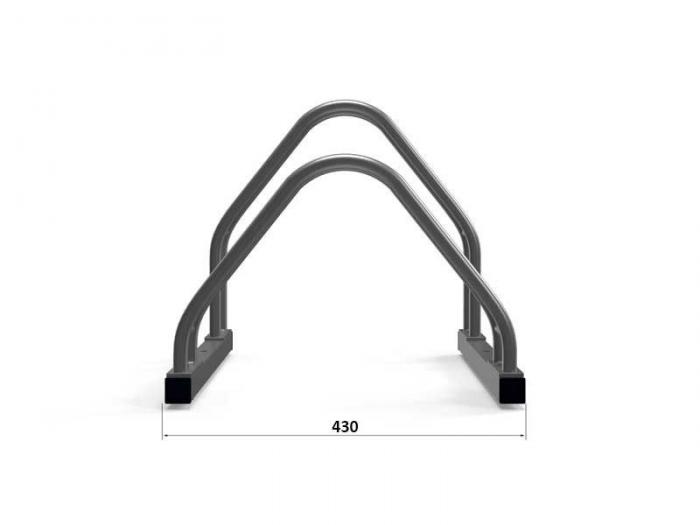

Dimensions (H × W × D): 30-40 × 144 × 43 cm
Spacing between places: 33 cm
Place width: 6.5 cm
Tube diameter: Ø 18 mm
Tube wall thickness: 2 mm
Profile: 30x30x1.5 mm
Material (options): galvanized steel, galvanized and painted steel or stainless steel
Place angle: adjustable from 90 to 45 degrees
Weight: 10.9 kg
Mounting: 4 expansion anchors Ø 10x100 mm with Ø 7x107 mm screws (included), for SW13 wrench or T40 bit
