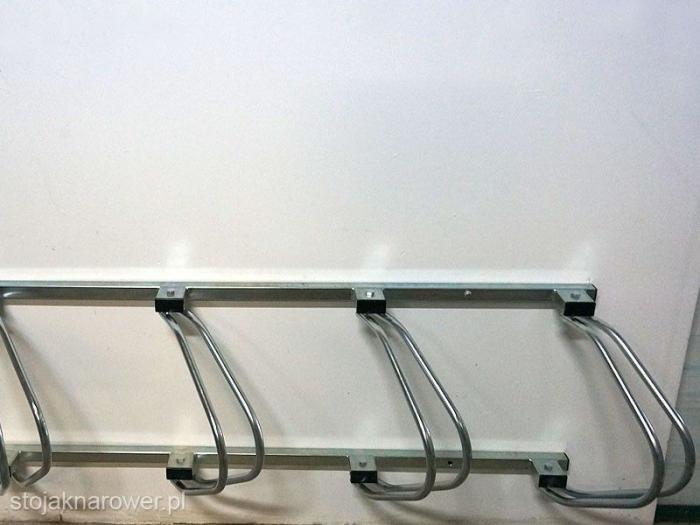

Echo-7 wall bike stand

The feature that distinguishes this stand model is the ability to adjust the angle of the parking stands at any angle. They are ideal for basements, garages or cart rooms.

Number of spaces: 7
Width: 264 cm
Stand height: 48 cm
Stand depth: 29 cm
Space width: 6,5 cm
Distance between spaces: 42 cm
Tube diameter: 18 mm
Tube wall thickness: 2 mm
Stand profile: 30x30x1,5 mm
Material (options): galvanised steel, galvanised and painted steel, stainless steel
Space adjustment: zakres od 90 do 45 st.
Fixing method: to the wall
Mounting method: bolt-down
Weight: 16 kg
Mounting: 8 expansion anchors Ø 10x100 mm with screws Ø 7x107 mm (included), key SW13 or T40
Bike space arrangement: angled or perpendicular
