Cross bike stand save-13

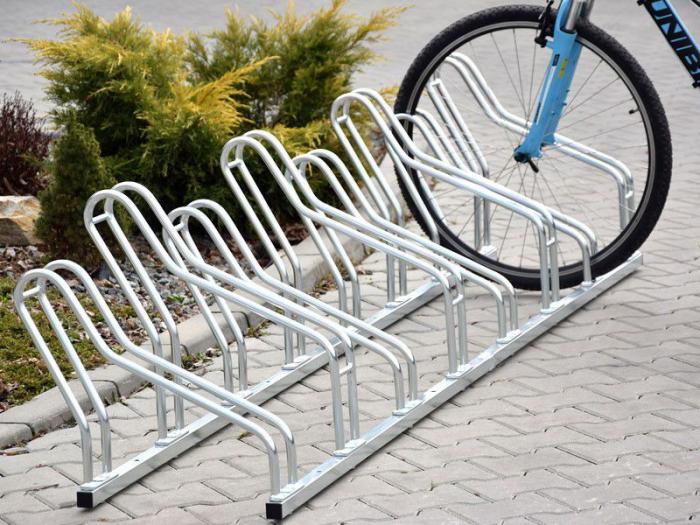

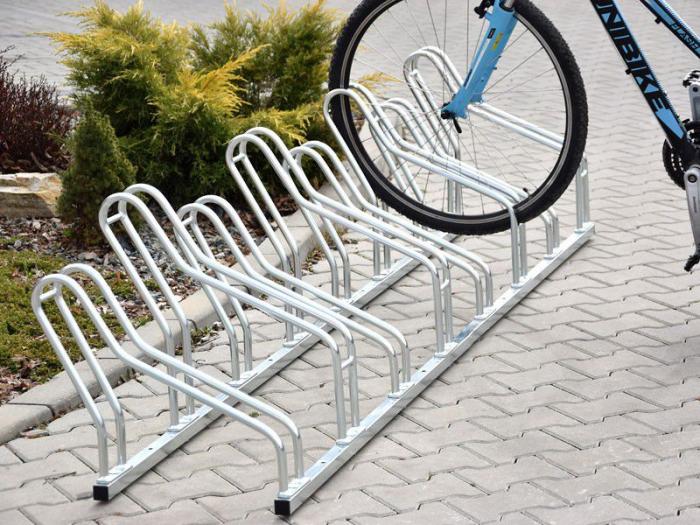

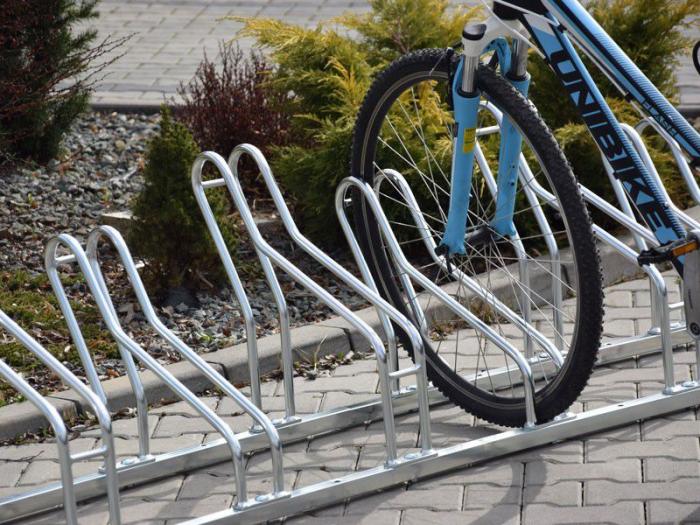

CROSS SAVE bike racks are a series of products created for customers who have limited parking space. By maintaining smaller distances between bicycle stations, it is possible to park more bicycles in a small area.  Specially designed stands allow bicycles to be parked on two different levels, which excludes contact between the parked bicycles. Thanks to this solution, despite smaller distances between stations, the comfort and safety of using the stand is fully ensured. An additional advantage of the stand is the possibility of parking bicycles on both sides of the stand, as well as arranging the positions at an angle (range 45-90 degrees).

Number of spaces: 13
Width: 408 cm
Height: 45-55 cm
Space width: 6,5 cm
Distance between spaces: 33 cm
Tube diameter: 18 mm
Tube wall thickness: 2 mm
Stand profile: 30x30x1,5 mm
Material (options): galvanised steel, galvanised and painted steel, stainless steel
Space adjustment: adjustable (90 and 45 stopni)
Fixing method: to the ground
Mounting method: bolt-down
Weight: 35 kg
Mounting: 12 expansion anchors Ø 10x100 mm with screws Ø 7x107 mm (included), key SW13 or T40

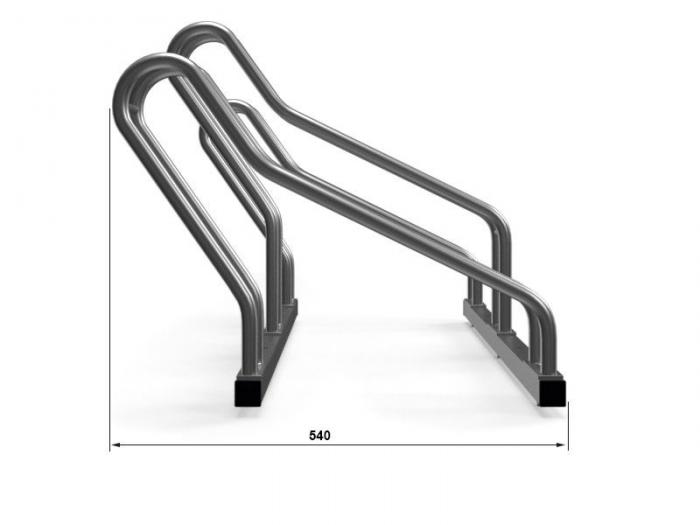

Total stand depth: 54 cm
Bike space arrangement: angled or perpendicular
