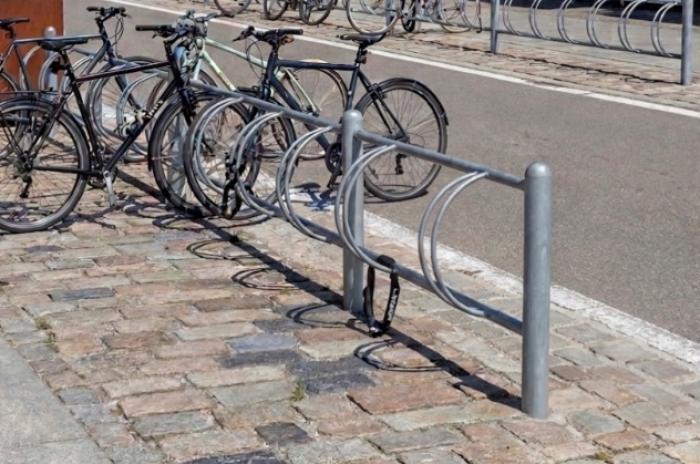

Bicycle rack, vertical on both sides

These double-sided bicycle racks are characterised by sturdy profiles that keep the rack upright whilst also protecting it against petty theft and vandalism.

They fit perfectly as small architectural features in parks, squares, and sports and leisure facilities.

Double-sided bicycle rack
Tapered wheel holders suitable for all tyre types
Provides clearance for lights mounted on the front wheel hub
Modular construction allows sections to be combined to the required length
Available with straight (90°)

MATERIALS
Hot-dip galvanised steel
Also available in powder-coated, hot-dip galvanised steel

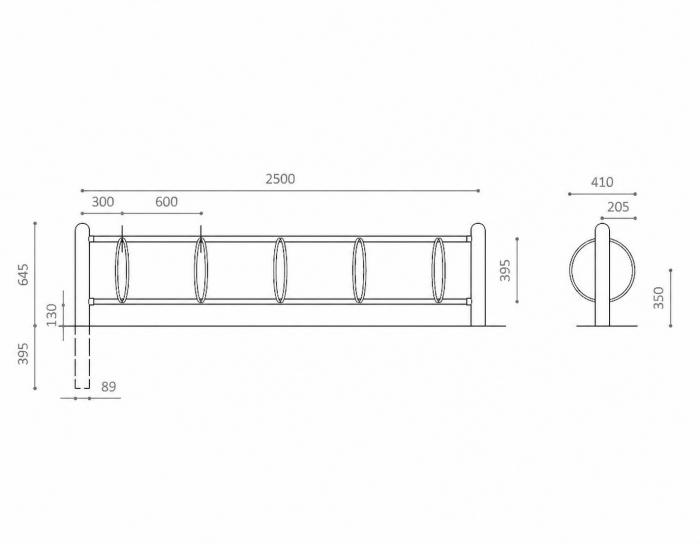

DIMENSIONS
Post: Ø89 mm
Longitudinal rails: Ø35 mm
Wheel holders: Ø16 mm

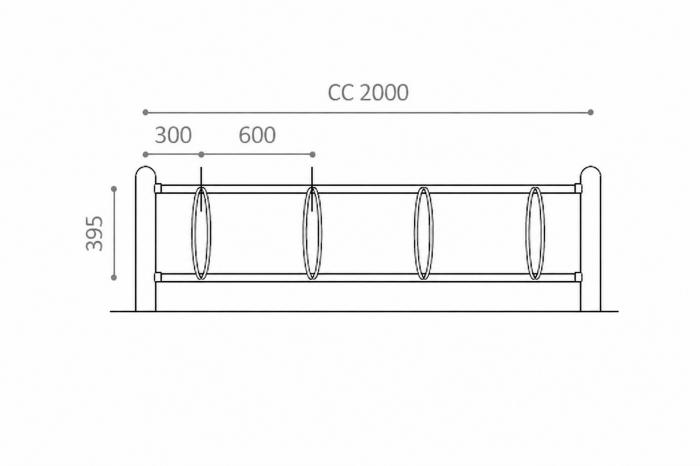

DGNB-approved centre-to-centre spacing: c/c 600 mm

MODULE SIZES
Double-sided: 8 or 10 bicycle spaces

INSTALLATION
Available for installation by concreting into the ground, bolting to a prepared surface or wall mounting
Recommended foundation size: Ø300 × H600 mm
Distance from ground level to the centre of the wheel holder: 350 mm
Distance from ground level to the lower edge of the wheel holder: 130 mm
